| Brand Name: | KOEO |
| Model Number: | KN-05 |
| MOQ: | 1 Set |
| Price: | USD 980-1,580 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 300 Sets per Month |

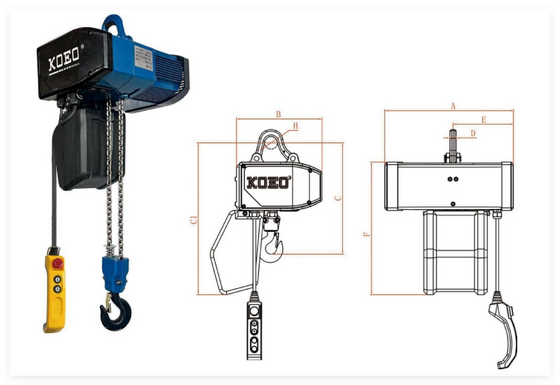

The KOEO KN-05 is a 5-ton heavy duty industrial electric chain hoist built for the most demanding lifting environments. With a twin motor drive system, dual electromagnetic DC brakes, and DAT grade alloy steel chain in 2-fall configuration, the KN-05 delivers exceptional lifting power for steel fabrication, shipyards, heavy machinery assembly, and large-scale industrial projects.
| Parameter | Specification |
|---|---|
| Load Capacity | 5000 kg (5 Ton) |
| Lifting Speed (50Hz) | 2.8 m/min |
| Lifting Speed (60Hz) | 3.4 m/min |
| Standard Lifting Height | 6 m (customizable up to 30 m) |
| Motor Configuration | Twin Motor, 3.0 kW each |
| Total Motor Power | 6.0 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | DAT Grade Alloy Steel, Ø11.2 mm |
| Chain Falls | 2 |
| Motor Protection | IP54 |
| Insulation Class | Class F (155°C) |
| Brake Configuration | Dual Electromagnetic DC Brake |
| Duty Rating | A4 / M5 (FEM/ISO) |
| Control Type | 48V Pendant Control with Emergency Stop |
| Net Weight | 95 kg |
| Noise Level | ≤ 78 dB |
| Finish | Electrostatic Anti-Corrosion Powder Coating |
The KN-05 is engineered for heavy lifting in steel mills, shipbuilding yards, heavy equipment manufacturing, large foundry operations, power plant maintenance, bridge construction, and heavy machinery assembly. The dual brake system and 2-fall chain configuration provide the reliability and safety margins required for critical lifts. Compatible with motorized trolley systems for overhead crane integration.
Each KN-05 hoist is packed in a KOEO-branded heavy-duty plywood case with VCI anti-rust film, reinforced high-density foam padding, and silica gel desiccant packs. Export-grade reinforced outer carton with steel banding ensures safe international transport. Standard delivery: 7-10 working days for stock models, 20-30 days for bulk production orders.
