IP55 Variable Speed Electric Hoist 3 Phase Small Chain Hoist 250kg KOEO EQ0.25-01

Name: IP55 Variable Speed Electric Hoist 3 Phase Small Chain Hoist 250kg KOEO EQ0.25-01
Brand: Zhejiang Junchi Machinery Co., Ltd
SKU: EQ0.25-01
Price: 550.00 USD
Availability: InStock

Brand Name:	KOEO
Model Number:	EQ0.25-01
MOQ:	1 Set
Price:	USD 420-680 / Set
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE, ISO 9001:2015

Load Capacity:

250 Kg

Lifting Speed Range:

3 To 15 M/min (VFD Variable)

Lifting Height:

4 M (standard, Customizable)

Motor Power:

0.75 KW

Motor Voltage:

380V / 400V 3-Phase 50Hz / 60Hz

Speed Control:

Variable Frequency Drive (VFD)

Protection Class:

IP55

Insulation Class:

Class F (155°C)

Brake Type:

Electromagnetic DC Brake

Load Chain Type:

G80 Grade Alloy Steel

Chain Diameter:

4.0 Mm

Chain Falls:

Control Voltage:

36V Low Voltage Pendant Control

Duty Rating:

A2 / M5 (FEM/ISO)

Net Weight:

30 Kg

Noise Level:

≤ 65 DB

Finish:

Electrostatic Powder Coating

Packaging Details:

KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton

Highlight:

IP55 Variable Speed Electric Hoist

3 Phase Small Chain Hoist

Small Chain Hoist 250kg

Product Description

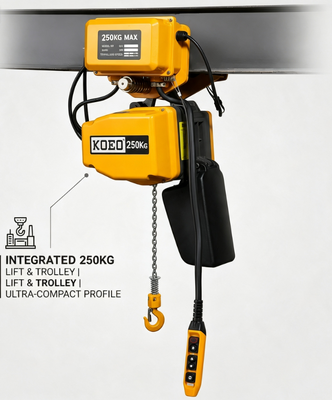

KOEO EQ0.25-01 250kg Variable Speed Small Electric Chain Hoist VFD Control IP55 Motor Compact Design 380V

The KOEO EQ0.25-01 is an ultra-compact 250kg small electric chain hoist featuring VFD (Variable Frequency Drive) speed control for precision lifting in space-constrained environments. With an IP55 enclosed motor, G80 alloy steel chain, and weighing just 30 kg, the EQ0.25-01 is the ideal solution for electronics assembly, clean rooms, laboratories, and light manufacturing where gentle load handling and small footprint are essential.

🔧 Key Features

VFD Variable Speed Control: Full-range variable lifting speed from 3 m/min to 15 m/min via integrated VFD. Smooth acceleration and deceleration ramps for fragile or precision loads without jerking.
Ultra-Compact Lightweight Design (30 kg): Engineered for tight spaces with minimal overhead clearance requirements. Easy to install on lightweight support structures, jib cranes, or mobile gantries.
IP55 Enclosed Motor (0.75 kW): Dust-tight and water-jet protected motor with Class F insulation. Reliable operation in clean room environments as well as dusty workshop conditions.
Precision Electromagnetic DC Brake: Instant, silent braking with zero load drift. Holds the load precisely at any height without creep, critical for positioning-sensitive applications.
Low Noise Operation (≤ 65 dB): Optimized gear train and VFD-controlled motor ramp profiles minimize noise, making the EQ-V01 suitable for quiet environments including laboratories and clean rooms.
Overload Protection: Built-in overload sensing prevents accidental lifting beyond 250kg capacity, safeguarding both the hoist and the load.
48V Pendant Control: Low voltage push-button pendant with precise speed adjustment dial for one-handed operation and maximum operator safety.

📋 Technical Specifications

Parameter	Specification
Load Capacity	250 kg
Lifting Speed (Variable)	3— 15 m/min (VFD controlled)
Standard Lifting Height	4 m (customizable)
Motor Power	0.75 kW
Power Supply	380V / 400V 3-Phase 50Hz / 60Hz
Chain Type & Grade	G80 Grade Alloy Steel, Ø4.0 mm
Chain Falls	1
Motor Protection	IP55
Insulation Class	Class F (155°C)
Duty Rating	A2 / M5 (FEM/ISO)
Control Type	36V Pendant with VFD Speed Dial
Net Weight	30 kg
Noise Level	≤ 65 dB
Finish	Electrostatic Powder Coating

🏭 Applications

The EQ0.25-01 excels in precision lifting environments including electronics assembly lines, medical device manufacturing, optical instrument handling, clean rooms (Class 1000 and above), pharmaceutical production, laboratory sample handling, and light CNC machine tool loading. The VFD speed control enables smooth, gradual lifting of sensitive components without shock or vibration. Compatible with jib crane, monorail trolley, and fixed mount configurations.

✅ Quality & Certification

CE Certified – Compliant with EU Machinery Directive 2006/42/EC
ISO 9001:2015 Quality Management System
4:1 safety factor on all load-bearing components
100% factory load-tested at 1.25x rated capacity before shipment
G80 chain certified to EN 818-7 standard

📦 Packaging & Delivery

Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
