380V Heavy Duty Wire Rope Hoist Overload Protection 5T Electric Hoist 12m Lift

Name: 380V Heavy Duty Wire Rope Hoist Overload Protection 5T Electric Hoist 12m Lift
Brand: Zhejiang Junchi Machinery Co., Ltd
SKU: RY-05
Price: 1.00 USD
Availability: InStock

Brand Name:	KOEO
Model Number:	RY-05
MOQ:	1 Set
Price:	USD 1,580-2,450 / Set
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	200 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Hebei, China

Certification:

CE, ISO 9001:2015

Load Capacity:

5000 Kg (5 Ton)

Lifting Speed:

4.0 M/min (50Hz) / 4.8 M/min (60Hz)

Lifting Height:

12 M (standard, Up To 40m Customizable)

Motor Power:

7.5 KW

Motor Voltage:

380V / 400V 3-Phase 50Hz / 60Hz

Protection Class:

IP55

Insulation Class:

Class F (155°C)

Brake Type:

Dual Electromagnetic DC Brake

Rope Type:

Galvanized Steel Wire Rope, 1960 N/mm²

Rope Diameter:

15 Mm

Rope Falls:

Drum Type:

Grooved Cast Iron Drum

Control Voltage:

48V Low Voltage Pendant Control

Duty Rating:

A5 / M6 (FEM/ISO)

Net Weight:

350 Kg

Noise Level:

≤ 78 DB

Finish:

Electrostatic Powder Coating, Anti-Corrosion

Packaging Details:

KOEO branded heavy-duty plywood case with steel banding, VCI anti-rust film, reinforced foam padding, and export-grade outer carton

Highlight:

380V Heavy Duty Wire Rope Hoist

Overload Protection 5T Electric Hoist

5T Electric Hoist 12m

Product Description

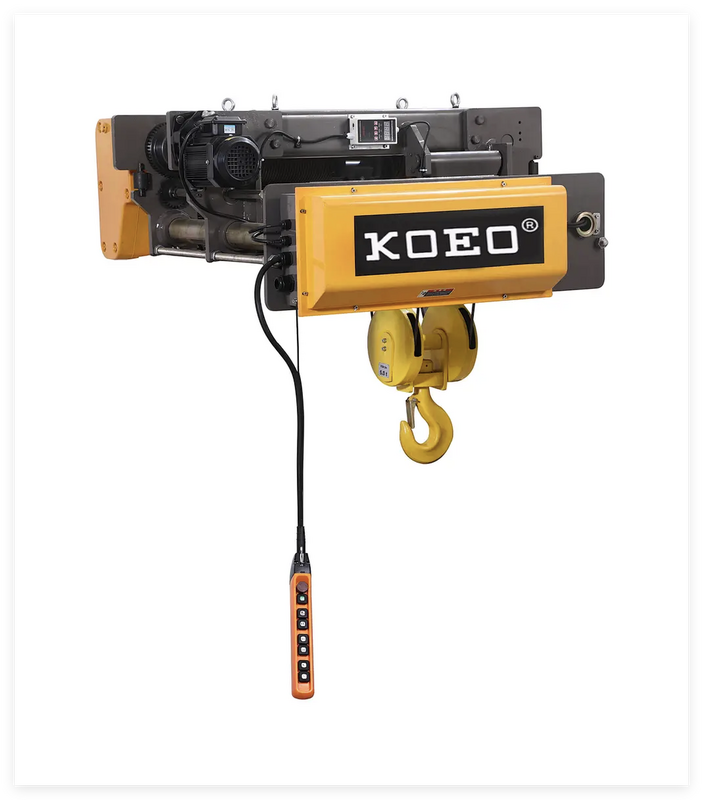

KOEO RY-05 5 Ton Heavy Duty Electric Wire Rope Hoist Lifting 380V 12m Lift Overload Protection

The KOEO RY-05 is a 5-ton heavy duty electric wire rope hoist purpose-built for the most demanding overhead lifting applications. With a rugged grooved cast iron drum, galvanized 1960 N/mm² steel wire rope in 4-fall configuration, 7.5 kW IP55 motor, and dual electromagnetic brake system, the RY-05 delivers exceptional lifting performance for steel mills, shipyards, heavy fabrication shops, and large-scale industrial crane systems.

🔧 Key Features

7.5 kW Heavy-Duty IP55 Motor: High-torque enclosed motor designed for continuous A5/M6 duty cycles in steel mills, foundries, and shipyards. Class F insulation with 155°C thermal rating ensures reliable performance under sustained heavy loads.
Dual Electromagnetic DC Brake System: Twin independent DC brakes provide redundant holding power for absolute safety. In any power loss scenario, both brakes engage instantly with zero load slippage – essential for overhead crane safety.
4-Fall Wire Rope Configuration (Ø15 mm): Galvanized 1960 N/mm² high-tensile steel wire rope in 4-fall reeving distributes 5-ton load across four rope sections for superior stability and extended rope service life.
Grooved Cast Iron Drum: Precision-machined drum grooves ensure perfect rope alignment during spooling, eliminating rope crossover and reducing wear. Heavy cast iron construction provides excellent heat dissipation during high-cycle operation.
Overload Protection System: Advanced load sensing system prevents lifting beyond 5-ton rated capacity. Factory-calibrated and tested at 6.25 tons for consistent, reliable overload trip performance.
Extended 12m Lift Height: Large-capacity drum accommodates 12 meters of wire rope as standard, with custom configurations available up to 40 meters for tall-bay crane installations.
Heavy-Duty Rotary Limit Switches: Dual rotary limit switches provide independent upper and lower travel limits with adjustable settings for custom lift height configurations.
48V Pendant with Emergency Stop: Industrial-grade pendant control with 48V low voltage operation, mushroom-head emergency stop button, and clear directional indicators for intuitive operation.

📋 Technical Specifications

Parameter	Specification
Load Capacity	5000 kg (5 Ton)
Lifting Speed (50Hz)	4.0 m/min
Lifting Speed (60Hz)	4.8 m/min
Standard Lifting Height	12 m (customizable up to 40 m)
Motor Power	7.5 kW
Power Supply	380V / 400V 3-Phase 50Hz / 60Hz
Rope Type	Galvanized Steel Wire Rope, 1960 N/mm²
Rope Diameter	Ø15 mm
Rope Falls	4
Drum Material	Grooved Cast Iron
Brake Configuration	Dual Electromagnetic DC Brake
Motor Protection	IP55
Insulation Class	Class F (155°C)
Duty Rating	A5 / M6 (FEM/ISO)
Control Type	36V Pendant with Emergency Stop
Net Weight	350 kg
Noise Level	≤ 78 dB
Finish	Electrostatic Anti-Corrosion Powder Coating

🏭 Applications

The RY-05 is engineered for the most demanding overhead lifting operations in steel mills, shipyards, heavy equipment manufacturing, large foundries, power plant turbine halls, bridge girder fabrication, container handling facilities, and heavy machinery assembly. The wire rope drum design with 4-fall configuration and dual brake system provides the safety margins and reliability required for critical lifts in 24/7 industrial operations. Fully compatible with overhead bridge crane and gantry crane integration.

✅ Quality & Certification

CE Certified – Compliant with EU Machinery Directive 2006/42/EC
ISO 9001:2015 Quality Management System
4:1 safety factor on all load-bearing components
100% factory load-tested at 1.25x rated capacity (6.25 tons) before shipment
Steel wire rope certified to EN 12385 standard
Full traceability on all critical components with mill test certificates

📦 Packaging & Delivery

Each RY-05 hoist is partially disassembled and packed in a KOEO-branded heavy-duty plywood case with steel banding, VCI anti-rust film, reinforced high-density foam padding, and silica gel desiccant packs. Export-grade outer carton with corner protectors ensures safe international transport. Standard delivery: 10-15 working days for stock models, 25-35 days for bulk production orders.
