| Brand Name: | KOEO |
| Model Number: | HHBBSL01-01 |
| MOQ: | 1 Set |
| Price: | USD 480-780 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 400 Sets per Month |

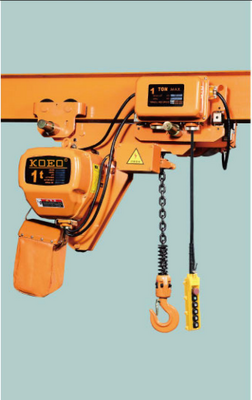

The KOEO HHBBSL01-01 is a 1-ton low headroom electric chain hoist specifically engineered for facilities with limited overhead clearance. Its ultra-compact body design maximizes usable lift height in low-ceiling factories, workshops, and production lines. Equipped with an IP54 enclosed motor, G80 alloy steel chain, and comprehensive safety features, the HHBB-01 delivers space-optimized lifting without compromising performance.
| Parameter | Specification |
|---|---|
| Load Capacity | 1000 kg (1 Ton) |
| Lifting Speed | 6.6 m/min |
| Standard Lifting Height | 4m (customizable) |
| Motor Power | 1.5 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | G80 Grade Alloy Steel, Ø7.1 mm |
| Chain Falls | 1 |
| Motor Protection | IP54 |
| Insulation Class | Class F (155°C) |
| Duty Rating | A3 / M3 (FEM/ISO) |
| Control Type | 36V Pendant Control |
| Net Weight | 38 kg |
| Noise Level | ≤ 72 dB |
| Finish | Electrostatic Powder Coating |
The HHBBSL01-01 excels in low-ceiling factories, basement-level workshops, retrofitted industrial buildings, underground parking lift stations, ship compartments, and any facility where overhead space is at a premium. The compact body design recovers critical lift height that standard hoists lose to housing clearance. Compatible with monorail trolley, jib crane, and fixed mount configurations.
Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
