| Brand Name: | KOEO |
| Model Number: | EQFC05 |
| MOQ: | 1 Set |
| Price: | USD 2,500-3,800 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 100 Sets per Month |

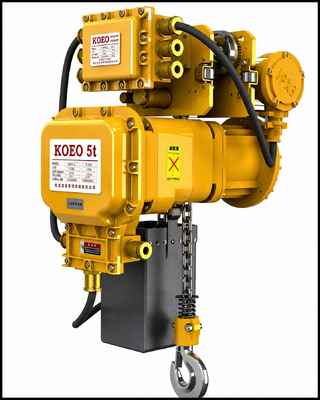

Explosion Proof 5 Ton Electric Chain Hoist Exd II CT4 IP65 Twin Motor G80 Chain 380V Yellow Heavy Duty Hazardous
The KOEO EQFC05 is a heavy duty explosion proof 5 ton electric chain hoist certified Exd II CT4 for Zone 1 and Zone 2 hazardous area heavy lifting. Engineered for petrochemical reactor maintenance, offshore platform crane operations, and refinery turnaround projects, the HB-5T-Ex features 3.6 kW flameproof IP55 motors, a 2-fall anti-static G80 alloy steel chain system, dual explosion proof electromagnetic DC brakes, and copper-free yellow aluminum body construction. Every component from the flameproof motor enclosures to the encapsulated pendant controller meets ATEX Directive 2014/34/EU requirements for gas group II C and temperature class T4, enabling confident 5-ton lifting in environments containing hydrogen and other highly flammable gases.
Key Features| Parameter | Specification |
|---|---|
| Load Capacity | 5000 kg (5 Ton) |
| Lifting Speed | 1.2/3.5m/min |
| Explosion Proof Class | Exd II CT4 / Zone 1, 2 |
| Standard Lifting Height | 4 m (customizable) |
| Motor Configuration | 3.6 kW |
| Power Supply | 380V 3-Phase 50Hz / 60Hz |
| Chain Type | G80 Alloy Steel, Ø11.2 mm (anti-static) |
| Chain Falls | 2 |
| Motor Protection | IP65 (flameproof enclosure) |
| Insulation Class | Class H (180°C) |
| Brake Configuration | Dual Explosion Proof DC Brake |
| Control Type | Explosion Proof 48V Pendant + E-Stop |
| Body Material | Copper-Free Aluminum Alloy, Yellow |
| Net Weight | 180 kg |
The EQFC05 is certified for petrochemical reactor vessel maintenance requiring 5-ton lifts in Zone 1 classified areas, offshore oil and gas platform crane auxiliary systems, refinery turnaround and shutdown heavy equipment handling, chemical processing plant heat exchanger replacement, LNG terminal equipment maintenance, and fuel storage tank farm operations. The Exd II CT4 certification covers explosive atmospheres with the widest range of industrial gases and vapors at T4 surface temperature limits.
Packaging and Quality AssuranceEach EQFC05 is packed in a KOEO-branded heavy-duty plywood case with anti-static wrapping, reinforced internal steel frame, high-density polyurethane foam, and silica gel desiccant packs. Anti-static export-grade outer carton with steel banding. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (6.25 tons) with ATEX certification verification, flameproof integrity testing, and spark generation analysis. CE certified, ATEX 2014/34/EU compliant. ISO 9001:2015 manufactured. G80 chain EN 818-7 certified. Delivery within 15 to 20 working days for stock, 30 to 40 days for production.
