| Brand Name: | KOEO |
| Model Number: | EQFC20-08 |
| MOQ: | 1 Set |
| Price: | USD 8,500-13,000 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 30 Sets per Month |

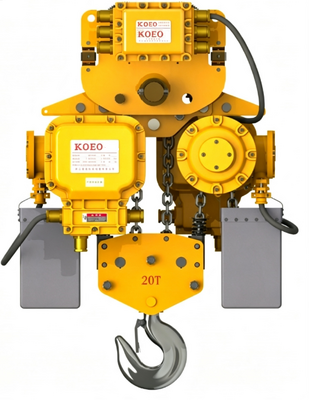

Explosion Proof 20 Ton High Capacity Electric Chain Hoist Exd II CT4 IP65 Quad Motor G80 Chain 380V Yellow Heavy Duty
The KOEO EQFC20-08 is the highest capacity explosion proof electric chain hoist in the KOEO lineup, delivering 20 ton lifting with full Exd II CT4 hazardous area certification. Engineered for the most demanding Zone 1 and Zone 2 heavy lifting operations in petrochemical complexes, offshore platform major maintenance, and refinery reactor replacement projects, the EQFC20-08 features a quad explosion proof motor configuration with four synchronized 4.5 kW flameproof IP65 motors (18 kW total), a 4-fall anti-static G80 alloy steel chain system, and quad independent explosion proof DC brakes. Every component from the flameproof motor enclosures to the 48V pendant controller carries individual ATEX certification, with a comprehensive System Integration Declaration covering the complete assembled hoist. The EQFC20-08 represents the ultimate expression of explosion proof lifting engineering for the world's most hazardous heavy industrial environments.
Key Features| Parameter | Specification |
|---|---|
| Load Capacity | 20000 kg (20 Ton) |
| Lifting Speed | 1.2 m/min |
| Explosion Proof Class | Exd II CT4 / Zone 1, 2 |
| Standard Lifting Height | 8 m (customizable up to 30 m) |
| Motor Configuration | 4.5 kW x 4 (Quad, 18 kW total) |
| Power Supply | 380V 3-Phase 50Hz / 60Hz |
| Chain Type | G80 Alloy Steel, Ø11.2 mm (anti-static) |
| Chain Falls | 4 (quad path, 2 falls per pair) |
| Motor Protection | IP65 (flameproof enclosure) |
| Insulation Class | Class H (180°C) |
| Brake Configuration | Quad Explosion Proof DC Brake |
| Control Type | Flameproof 48V Pendant + E-Stop |
| Body Material | Copper-Free Al Alloy + Stainless Steel |
| Net Weight | 580 kg |
The EQFC20-08 is certified for petrochemical reactor replacement projects in Zone 1 classified areas, offshore oil and gas platform major equipment overhauls, refinery crude distillation unit maintenance, LNG liquefaction train heavy component handling, chemical plant pressure vessel installation, and any hazardous area application where 20-ton certified explosion proof lifting capability is required. The quad motor and quad brake configuration provides the safety redundancy demanded by major hazard facility risk assessments in the oil and gas industry.
Packaging and Quality AssuranceEach EQFC20-08 is packed in a KOEO-branded heavy-duty plywood case with anti-static wrapping, reinforced internal steel frame, high-density polyurethane foam padding, and industrial-grade silica gel desiccant packs. Anti-static export-grade outer carton with heavy-duty steel banding and shock-watch impact indicators. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (25 tons) with complete ATEX flameproof integrity verification, quad motor synchronization testing, spark generation analysis, and individual component certification documentation. CE certified, ATEX 2014/34/EU compliant. ISO 9001:2015 manufactured. G80 chain EN 818-7 certified. Delivery within 30 to 45 working days for production orders.
