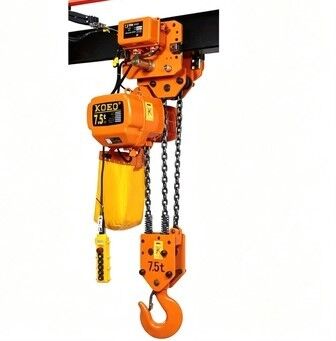

7500kg Lifting Chain Hoists 3 Falls G80 Chain Electric Hoist With Trolley

7500kg Lifting Chain Hoists 3 Falls G80 Chain Electric Hoist With Trolley

7500kg Lifting Chain Hoists 3 Falls G80 Chain Electric Hoist With Trolley

Brand Name:	KOEO
Model Number:	HHBB075-03
MOQ:	1 Set
Price:	USD1450-1700/Set
Payment Terms:	T/T,L/C
Supply Ability:	200 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE, ISO 9001:2015

Name:

Lifting Chain Hoists

Capacity:

7.5T

Lifting Height(m):

3/9

Litting Speed(m/min):

1.8m/min

Lifting Motor Power:

3.0Kw

Phases:

3

Voltage:

380V

Frequency:

50Hz

Operating Motor Power:

0.75Kw

Operating Speed:

11/21m/min

Packaging Details:

KOEO branded heavy-duty plywood case with VCI anti-rust film, reinforced foam padding, export-grade outer carton with steel banding

Highlight:

7500kg Lifting Chain Hoists

,

3 Falls Electric Hoist With Trolley

,

G80 Chain Electric Hoist With Trolley

Product Description

Electric Chain Hoist 7500kg 3 Falls G80 Chain with Trolley Single Speed 380V

Parameter	7.5T Running Type
Model	HHBB075-03
Rated Load	7,500 kg
Lifting Speed	1.8m/min
Lifting Motor	3.0 kW
Power Supply	380V / 50Hz / 3 Phase
Load Chain	Φ11.2 (G80)
Chain Falls	3
Lifting Height	4m (Customizable)
Travel Speed	11 / 21 m/min
Travel Motor	0.75 kW
Protection	IP54 /M3

Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop outomatically so as to prohibit the chains from exceeding for safety.
24V/36V device: it is used to prohibit the emergencies from occuring in case of the leakage in the switch.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain bag: It shall be light, handsome and durable.
Chain: The chain shall adopt the imported FEC80 ultra heat-treatable aluminum alloy chain.

Tags:

Chain Electric Hoist

Industrial Lifting Hoist

Lifting Chain Hoists
