| Brand Name: | KOEO |
| Model Number: | EQ-01 |
| MOQ: | 1 Set |
| Price: | USD 380-680 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500 Sets per Month |

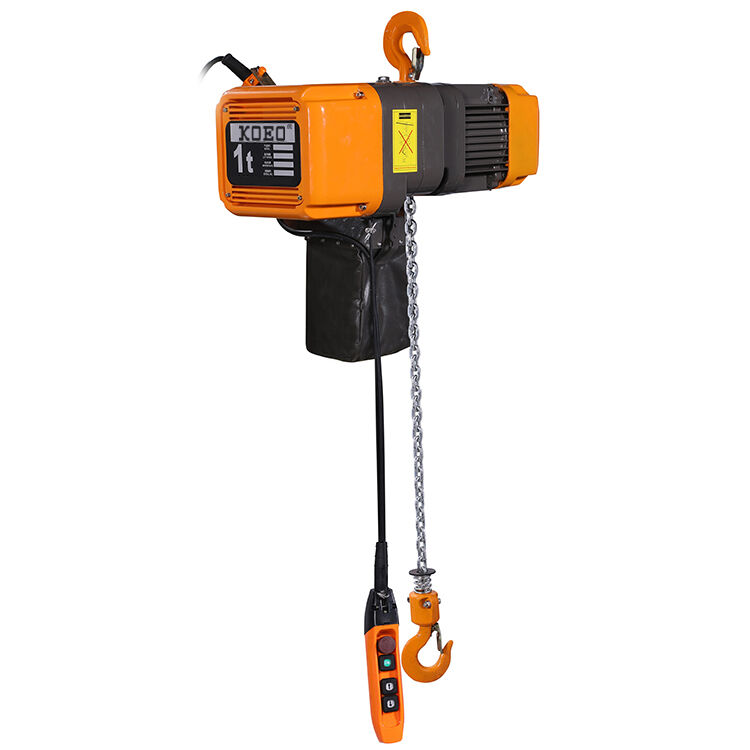

The KOEO EQ-01 is a high-performance 1-ton 3 Phase electric chain hoist engineered for reliable lifting in workshops, warehouses, assembly lines, and light manufacturing. Built with an IP55-rated enclosed motor and G80 grade alloy steel load chain, the EQ-01 delivers smooth, safe, and precise lifting with every operation.
| Parameter | Specification |
|---|---|
| Load Capacity | 1000 kg (1 Ton) |
| Lifting Speed (50Hz) | 6.8 m/min |
| Lifting Speed (60Hz) | 8.2 m/min |
| Standard Lifting Height | 3 m (custom lengths available) |
| Motor Power | 1.5 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | G80 Grade Alloy Steel, Ø7.1 mm |
| Chain Falls | 1 |
| Motor Protection | IP55 |
| Insulation Class | Class F (155°C) |
| Duty Rating | A3 / M4 (FEM/ISO) |
| Control Type | 36V Pendant Control (push-button) |
| Noise Level | ≤ 72 dB |
| Finish | Electrostatic Powder Coating, RAL 5005 Blue |
The EQ-01 is widely used in mechanical assembly lines, automotive workshops, warehouse loading docks, printing plants, food processing facilities, and general manufacturing environments where precise 1-ton lifting is required. Compatible with manual trolley, motorized trolley, and fixed hook mounting configurations.
Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
