| Brand Name: | KOEO |
| Model Number: | EQ-02 |
| MOQ: | 1 Set |
| Price: | USD 520-850 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500 Sets per Month |

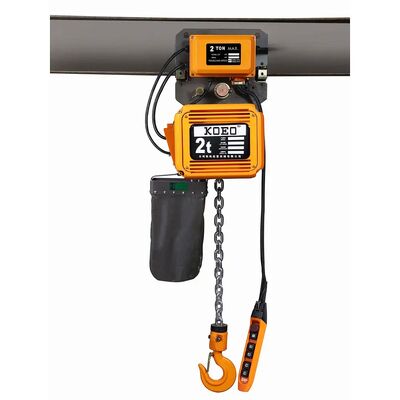

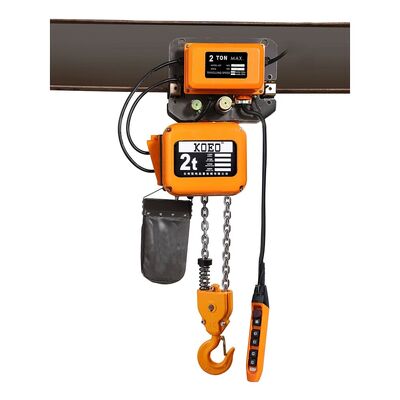

The KOEO EQ-02 is a 2-ton dual speed Three Phase electric chain hoist designed for demanding industrial lifting applications. With precision slow/fast speed control, a forged steel heat-treated hook, and IP55 enclosed motor, the EQ-02 delivers safe and efficient load handling in factories, warehouses, steel plants, and heavy assembly environments.
| Parameter | Specification |
|---|---|
| Load Capacity | 2000 kg (2 Ton) |
| Lifting Speed - Slow | 2.3 m/min |
| Lifting Speed - Fast | 7.0m/min |
| Standard Lifting Height | 4 m (customzabile) |
| Motor Power | 3.6 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | G80 Grade Alloy Steel, Ø10.0 mm |
| Chain Falls | 1 |
| Motor Protection | IP55 |
| Insulation Class | Class F (155°C) |
| Duty Rating | A3 / M5 (FEM/ISO) |
| Hook Type | Forged Alloy Steel, Heat Treated, with Safety Latch |
| Control Type | 36V Pendant Control (push-button) |
| Noise Level | ≤ 75 dB |
| Finish | Electrostatic Powder Coating, RAL 5005 Blue |
The EQ-02 is the ideal 2-ton Three Phase chain hoist for steel structure fabrication, heavy machinery assembly, automotive manufacturing lines, foundry operations, logistics centers, and construction material handling. The dual speed feature makes it particularly suited for applications requiring both fast load transfer and precise component alignment. Compatible with manual trolley, motorized trolley, and fixed hook mounting configurations.
Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
