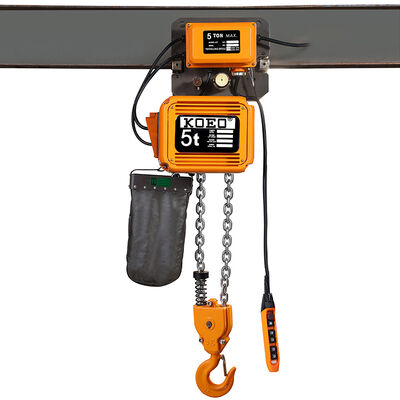

G80 Grade Alloy Steel Chain Three Phase Electric Hoists IP55 Heavy Duty Electric Chain Hoist 5 Ton

Name: G80 Grade Alloy Steel Chain Three Phase Electric Hoists IP55 Heavy Duty Electric Chain Hoist 5 Ton
Brand: Zhejiang Junchi Machinery Co., Ltd
SKU: EQ-05
Price: 290.00 USD
Availability: InStock

Brand Name:	KOEO
Model Number:	EQ-05
MOQ:	1 Set
Price:	USD 980-1,580 / Set
Payment Terms:	T/T,L/C
Supply Ability:	300 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Certification:

CE, ISO 9001:2015

Load Capacity:

5000 Kg (5 Ton)

Lifting Speed:

2.8 M/min (50Hz) / 3.4 M/min (60Hz)

Lifting Height:

6 M (standard, Up To 30m Customizable)

Motor Power:

3.0 KW X 2 (Twin Motor)

Motor Voltage:

380V / 400V 3-Phase 50Hz / 60Hz

Protection Class:

IP55

Insulation Class:

Class F (155°C)

Brake Type:

Dual Electromagnetic DC Brake

Load Chain Type:

G80 Grade Alloy Steel

Chain Diameter:

11.2 Mm

Chain Falls:

Control Voltage:

36V Low Voltage Pendant Control

Duty Rating:

A4 / M5 (FEM/ISO)

Hook Material:

Forged Alloy Steel, Heat Treated

Noise Level:

≤ 78 DB

Finish:

Electrostatic Powder Coating, Anti-Corrosion

Packaging Details:

KOEO branded heavy-duty plywood case with reinforced foam padding, VCI anti-rust film, and export-grade reinforced outer carton

Highlight:

G80 Chain Three Phase Electric Hoists

IP55 Heavy Duty Electric Chain Hois

Electric Chain Hoist 5 Ton

Product Description

KOEO 5 Ton Heavy Duty Electric Chain Hoist G80 Grade Alloy Steel Chain 3 Phase Motor Pendant Control 6m Lift

The KOEO EQ-05 is a heavy-duty 5-ton electric chain hoist purpose-built for the most demanding industrial lifting operations. Equipped with a 3.6 kW motor system, G80 grade alloy steel load chain with 2-fall configuration, and dual electromagnetic DC brakes, the EQ-05 delivers exceptional lifting power for steel mills, shipyards, heavy fabrication shops, foundries, and large-scale construction projects.

🔧 Key Features

Motor Heavy-Duty Drive (3.6 kW): Dual 3-phase motors deliver combined high-torque output for confident 5-ton lifting. Both motors are IP55 enclosed with Class F insulation for reliable operation in dusty, humid, and high-temperature environments.
G80 Grade Alloy Steel Load Chain (Ø11.2 mm, 2 Falls): Premium G80 calibrated chain with 4:1 safety factor. The 2-fall chain configuration doubles lifting stability and distributes load stress evenly across reinforced chain guides and sprockets.
Dual Electromagnetic DC Brake System: Twin independent DC electromagnetic brakes provide redundant holding power. In the event of power loss, both brakes engage instantly to hold the load securely without any slippage.
Overload Protection Clutch: Precision-calibrated overload clutch prevents lifting beyond the 5-ton rated capacity. Factory-set and tested at 1.25x rated load to ensure consistent trip performance.
Upper & Lower Limit Switches: Heavy-duty mechanical limit switches provide positive stop at both hook travel extremes, protecting the chain, housing, and internal components from over-travel damage.
Industrial-Grade Powder Coat Finish: Electrostatic powder coating with anti-corrosion formula protects the hoist body against rust, chemicals, and UV exposure. RAL 5005 signal blue finish ensures high visibility on the shop floor.
36V Low Voltage Pendant Control: Robust push-button pendant operating at 36V for maximum operator safety, with 4-meter standard cable length and emergency stop button.

📋 Technical Specifications

Parameter	Specification
Load Capacity	5000 kg (5 Ton)
Lifting Speed (50Hz)	3.5 m/min
Standard Lifting Height	4 m (up to 30 m customizable)
Motor Configuration	3.6Kw
Power Supply	380V / 400V 3-Phase 50Hz / 60Hz
Chain Type & Grade	G80 Grade Alloy Steel, Ø11.2 mm
Chain Falls	2
Motor Protection	IP55
Insulation Class	Class F (155°C)
Brake Configuration	Dual Electromagnetic DC Brake
Duty Rating	A4 / M5 (FEM/ISO)
Control Type	36V Pendant Control with Emergency Stop
Pendant Cable Length	4 m (standard)
Noise Level	≤ 78 dB
Finish	Electrostatic Anti-Corrosion Powder Coating, RAL 5005 Blue

🏭 Applications

The EQ-05 is engineered for the heaviest lifting challenges in steel mills, shipbuilding yards, heavy equipment manufacturing, large foundry operations, power plant maintenance, bridge construction, and heavy machinery assembly. The 2-fall chain configuration and twin motor drive make it the preferred choice where 5-ton loads must be lifted repeatedly with absolute reliability. Compatible with motorized trolley systems for overhead crane integration.

✅ Quality & Certification

CE Certified – Compliant with EU Machinery Directive 2006/42/EC
ISO 9001:2015 Quality Management System
4:1 safety factor on all load-bearing components
100% factory load-tested at 1.25x rated capacity (6.25 tons) before shipment
G80 chain certified to EN 818-7 standard
Forged hook certified to EN 1677 standard, 5:1 ultimate safety factor
Full traceability on all critical components with material certificates

📦 Packaging & Delivery

Each EQ-05 hoist is packed in a KOEO-branded heavy-duty plywood case with VCI anti-rust film, reinforced high-density foam padding, and silica gel desiccant packs. Export-grade reinforced outer carton with steel banding ensures safe international transport. Standard delivery: 7-10 working days for stock models, 20-30 days for bulk production orders.
