| Brand Name: | KOEO |
| Model Number: | EQ0.5-01 |
| MOQ: | 1 Set |
| Price: | USD 550-880 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500 Sets per Month |

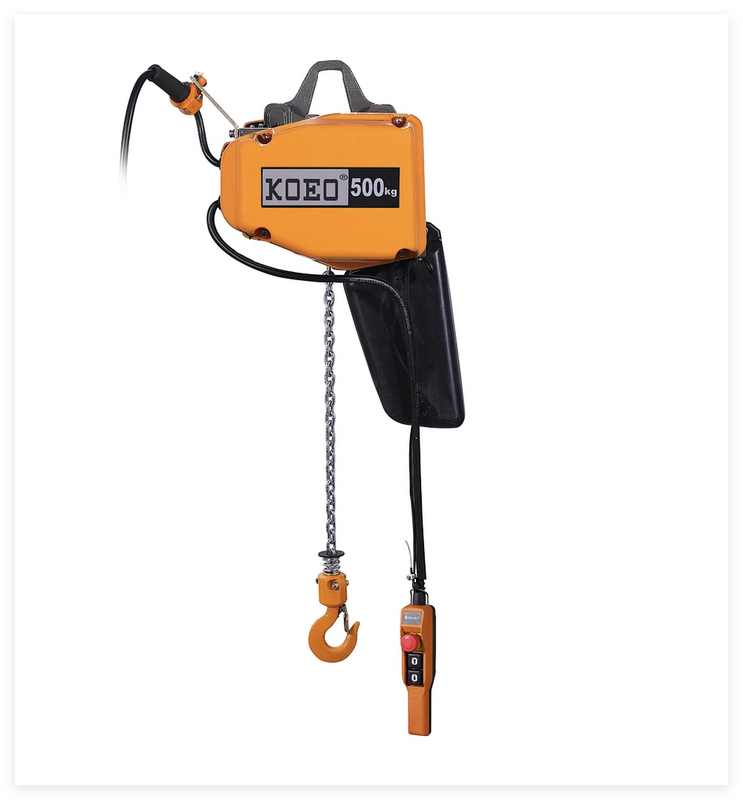

The KOEO EQ0.5-01 is a 500kg variable frequency small electric chain hoist designed for applications demanding precise speed regulation in a compact package. Featuring an integrated VFD drive with stepless speed control from 1.6 to 7.8 m/min, IP55 enclosed motor, and low-noise operation at just 68 dB, the EQ0.5-01 is the perfect fit for manufacturing cells, food processing lines, testing laboratories, and retail automation where controlled lifting matters.
| Parameter | Specification |
|---|---|
| Load Capacity | 500 kg |
| Lifting Speed (Variable) | 1.6 — 7.8 m/min (VFD stepless) |
| Standard Lifting Height | 4 m (customizable) |
| Motor Power | 0.75 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | G80 Grade Alloy Steel, Ø5.6 mm |
| Chain Falls | 1 |
| Motor Protection | IP55 |
| Insulation Class | Class F (155°C) |
| Duty Rating | A2 / M5 (FEM/ISO) |
| Control Type | 36V Pendant with VFD Speed Dial |
| Net Weight | 40 kg |
| Noise Level | ≤ 68 dB |
| Finish | Electrostatic Powder Coating |
The EQ0.5-01 is ideally suited for food and beverage processing lines, bottling plants, pharmaceutical packaging, retail stockroom automation, bakery and kitchen lifting, testing and calibration labs, small CNC machine loading, and assembly workstations. The VFD stepless speed control enables gentle handling of liquid-filled containers and fragile products. Compatible with workstation jib cranes, monorail systems, and fixed ceiling mounts.
Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
