| Brand Name: | KOEO |
| Model Number: | HHBBSL02 |
| MOQ: | 1 Set |
| Price: | USD 620-980 / Set |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 400 Sets per Month |

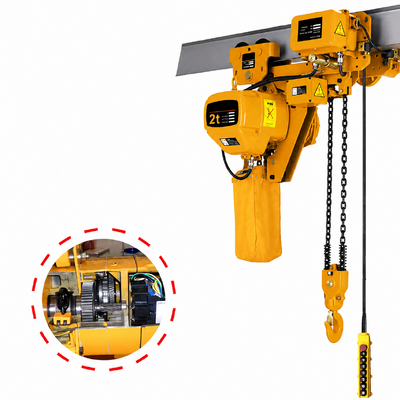

The KOEO HHBBSL02-01 is a 2-ton low headroom electric chain hoist that maximizes usable lifting height in spaces with restricted overhead clearance. Its innovative space-saving body geometry recovers critical centimeters of headroom compared to conventional hoists, while the 3.0 kW IP54 enclosed motor and G80 alloy steel chain deliver robust 2-ton lifting performance for low-ceiling industrial environments.
| Parameter | Specification |
|---|---|
| Load Capacity | 2000 kg (2 Ton) |
| Lifting Speed | 6.6 m/min |
| Standard Lifting Height | 4 m (customizable) |
| Motor Power | 3.0 kW |
| Power Supply | 380V / 400V 3-Phase 50Hz / 60Hz |
| Chain Type & Grade | G80 Grade Alloy Steel, Ø10.0 mm |
| Chain Falls | 1 |
| Motor Protection | IP54 |
| Insulation Class | Class F (155°C) |
| Duty Rating | A3 / M3 (FEM/ISO) |
| Control Type | 36V Pendant Control |
| Net Weight | 48 kg |
| Noise Level | ≤ 74 dB |
| Finish | Electrostatic Powder Coating |
The HHBBSL02-01 is the 2-ton solution for low-ceiling steel fabrication shops, automotive assembly bays with overhead ducting, retrofitted warehouse mezzanine levels, injection molding facilities, machine shops, and commercial building maintenance. Compatible with monorail trolley systems, jib cranes, and fixed ceiling mounts in any space-constrained lifting scenario.
Each hoist is packed in a KOEO-branded reinforced plywood case with high-density foam padding and moisture-proof wrapping. Export-grade outer carton ensures safe transport. Standard delivery: 5-7 working days for stock models, 15-25 days for bulk production orders.
